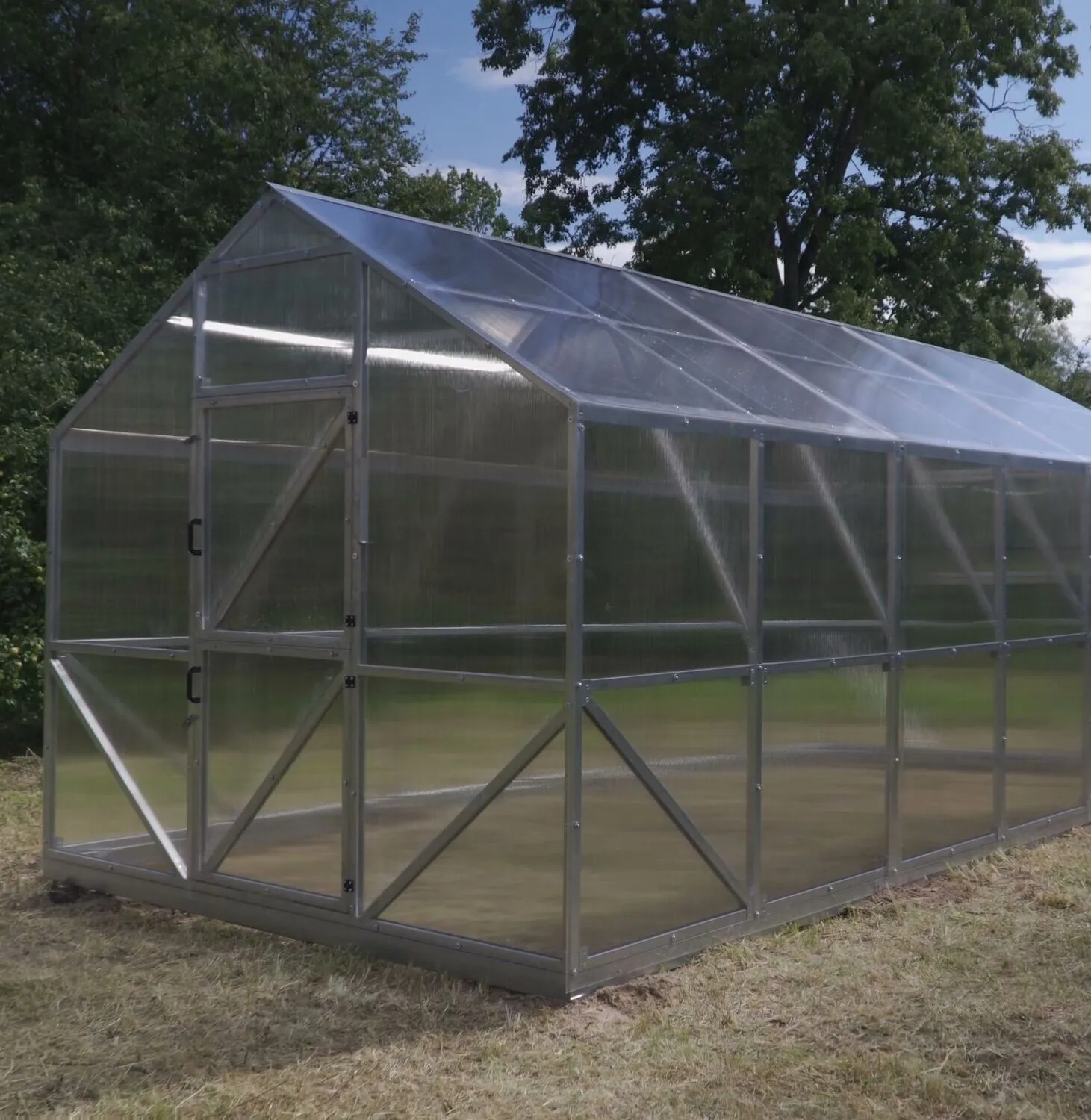

The VICTORIA is from our apex shaped line of Polycarbonate tunnels and comes at a standard of 3 Meters Wide. It is assembled using our standard Polycarbonate sheeting providing maximum sun-allowance to help plant/vegetable growth while also protecting against harsh weather conditions.
All of our fully fitted options are installed by our own in-house professional fitters.
Using the Greenhouse builder below, please select the desired Length of your Greenhouse. The option to add in our fully-fitted raised beds and our automatic ventilation windows are also available below. All extra additions are automatically added to the final price of the tunnel.
Description
Dimensions:
The VICTORIA comes at a standard width of 3 Metres Wide.
The length of the Tunnel starts at a minimum of 4 Metres Long and can be increased in multiples of 2 Metre sections to the desired length.
The overall Ridge Height of the Tunnel is 2.65 Metres when fitted on our pressure treated timber base while the overall side wall Height is 1.85 Meters.
Timber Base Frame:
Our timber base frame is 150 x 75mm, pressure-treated for outdoor durability.
Frame:
The frame is made of a galvanized square tube 40 x 40mm. The frame is assembled using a crab system. With this method of assembling the frame, the longitudinal guides (lintels connecting the arcs) are in the same plane with the polycarbonate, which provides the polycarbonate with additional support.
Standard set of a greenhouse has:
A Front Door with with a ventilating window and a ventilating window at the opposing end of the greenhouse. Additionally, you can purchase self-opening automatic vents.
Polycarbonate Sheeting:
Our standard twin-wall polycarbonate sheet is 6 metres long, 2.1 metres wide and 4mm thick. It has a layer of UV protection on the top.
We also have a 6mm polycarbonate sheeting option available on special request. Please contact us for details.
Polycarbonate fastening:
The polycarbonate roof sheets are secured using galvanised strapping on the outside of the sheets over the individual arches. The strapping is secured with galvanised Tec-screws with a rubber washer underlay to protect the sheeting from pressure damage.
Automatic Ventilation Window
An Automatic ventilation window, if not chosen with your install, can be added at a later date by yourself using the instructional video below.
